The Model V-44/RGBSS/G RGB High Resolution Video Distribution Amplifier with Horz. & Vert. Sync & Gain.

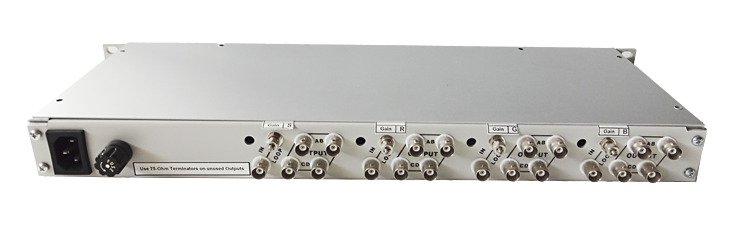

The back panel has four sets of BNC connectors for input-outputs. There is one input (loop-thru) and four outputs for each of the 4 channels.

Model V-44/RGBSS/G is designed to provide up to 4 Channels of Distribution / Isolation of Video signals & amplification.

The V-44/RGB/G Video Distribution Amplifier (also known as a distribution amp or VDA) takes a video signal as an input, amplifies it, and outputs the amplified video signal to two or more outputs. It is primarily used to supply a single video signal to multiple pieces of video equipment while compensating for signal deterioration over the cables.

V-44/RGB/G

Similar to Model V-44/RGBS/G, but with Sync on Green

V-44/RGBS/G

Similar to Model V-44/RGBS/G, but with Sync.

Applications:

  • Studio
  • CATV
  • Theaters
  • Live Events / Concerts
  • Security / Surveillance
  • Conventions / Political Rallys
  • Business / Industrial

PRICE:
  • $800 (U.S. Funds)

Specifications:
per channel

    RGB:
  • 1-In/4-Out
  • Connectors: BNC
  • BW: DC to 70MHz
  • 2 v p-p
  • 75Ω system
  • Gain: 6db (gain pot)
    SYNC:
  • 1-In/4-Out
  • Connectors: BNC
  • BW: DC to 200KC
  • 8 v p-p
  • 75Ω system
  • Gain: 6db (gain pot)
    POWER:
  • 110v
    SIZE:
  • 1 3/4" H x 19" W x 6" D
    WEIGHT:
  • 5 lbs
