The Model 71 1KC 12-24V Audio Oscillator is a logic module with an octal plug-in.

Our Model 71 audio oscillator produces frequencies at 1KC.

Audio oscillators generate a synthisized repetitive, oscillating electronic signal in electronic devices such as Television transmitters, Radio transmitters, RF Controls, Audio Synthesizers, and Inverters

Applications:

  • Audio Synthesizers
  • Broadcast TV Transmitters
  • Broadcast Radio Transmitters
  • Clock Signals that regulate Computers
  • Electronic Beepers
  • Inverters
  • RF Controls
  • Video Games

PRICE:
  • $ 50 (U.S. Funds)

Specifications:

    INPUT:
  • Connector: Octal Plug-In
    OUTPUT:
  • Connector: Octal Plug-In
  • ~2.5 V
  • RL≥600Ω
  • +10dbm
  • THD: 0.5%
    POWER:
  • +12-24V
    SIZE:
  • 1" Dia. x 2" H
    WEIGHT:
  • 2 oz.

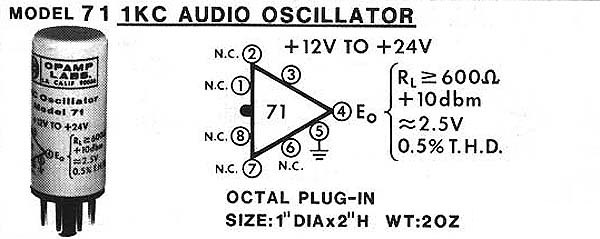

Model 71 1KCy Audio Oscillator
