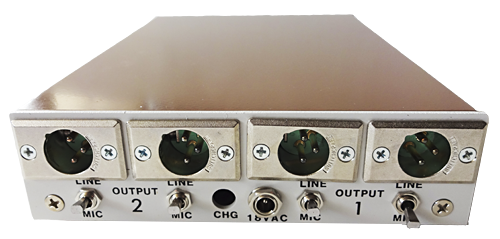

The Model A-4/2MLM Audio Distribution Amplifier / Mic/Line Monitor has 2-channels, each with 1 input and 2-channels of output .

This high quality unit is designed for amplification / distribution of microphone or line signals with Isolation / Distribution for multiple audio signals / locations. The A-4/2MLM Audio Distribution Amplifier is a device that accepts 2 Channels with a Single input signal and provides this same signal to up to 2 isolated outputs without ground loops or signal degradation. It can be used for splitting monitor and front of house mixes, and "tapping" a signal prior to sending it through effects units to preserve a "dry" signal for later experimentation.

Applications:

  • Broadcast
  • Conventions / Political Rallys
  • Courtrooms / Trials
  • Live Events / Concerts
  • Government Meetings / Press Conferences
  • Home use
  • Interviews
  • News
  • PA
  • Public Meetings
  • Security Briefs
  • Sports Events
  • Stadiums
  • Studio
  • Theaters
  • Business / Industrial

PRICE:
  • $475 (U.S. Funds)

Specifications:

    INPUTS: 2 Channels
  • 1 Balanced microphone - 200 Ω
  • Gain: 94db/Channel
  • Mic / Line Swithable - In / Out
    OUTPUTS: 2 Channels
  • 2 "XLR" - 600 Ω
  • 50 Hz - 15 KHz (±2db)
  • 8Ω Earphone Monitor
    POWER:
  • Wall transformer - 18V AC , 200ma , Included
    SIZE:
  • 6"w x 1-5/8"h x 8"d
    WEIGHT:
  • 5 lbs
