The Model V-44G Video Distribution Amplifier consists of a Model 512 Power Supply and 4-Model 404G Video Distribution Amplifiers with 6db of Gain which are mounted on a Model H-5/V Panel Chassis. Each of the 4 channels has 1 Input, a gain pot, and 4 Outputs

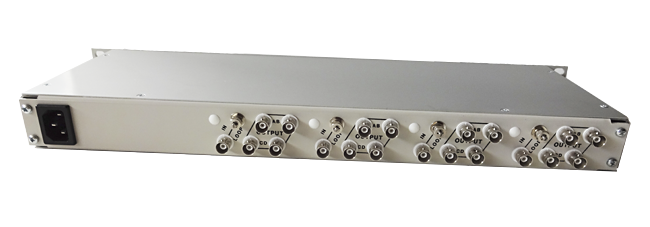

The back panel has four 12-terminal barrier strips for input-outputs. There is one input (loop-thru) and four outputs for each of the 4 channels.

Model V-44G is designed to provide up to 4 Channels of Distribution / Isolation of Video signals & amplification.

A Video Distribution Amplifier (also known as a distribution amp or VDA) takes a video signal as an input, amplifies it, and outputs the amplified video signal to two or more outputs. It is primarily used to supply a single video signal to multiple pieces of video equipment.

Video signals can suffer deterioration over relatively short cable distances. To compensate for that loss, a Video Distribution Amplifier (VDA) is used. A VDA adjusts the amplitude of a video signal to compensate for loss of signal in a video distribution system. Extending the distance of the video signal is the main purpose of the VDA.

Model V-44

Similar to Model V-44G, although the internal amplifiers are Model 404. Each of the 4 channels has 1 Input and 4 Outputs.

Applications:

  • Studio
  • CATV
  • Theaters
  • Live Events / Concerts
  • Security / Surveillance
  • Conventions / Political Rallys
  • Business / Industrial

PRICE: Model V-44G
  • $500 (U.S. Funds)

Specifications:
per channel

    INPUTS:
  • 1 BNC - "F" and RCA available
    OUTPUTS:
  • 4
    AMPS:
  • DC to 8 MHz (+- 1db)
  • Gain: 6db
  • Diff. Phase: 0.2 Deg.
  • Tilt & Overshoot: <1%
  • Hum & Noise: -60 db
  • Isolation: >40 db @ 3.58 MC
    POWER:
  • 110v
    SIZE:
  • 1 3/4" H x 19" W x 6" D
    WEIGHT:
  • 5 lbs
