The ModelH-68/400HZ/36V 400HZ Syncro Exciter.

Applications:

  • Industrial Control
  • Flow / Pressure Control
  • Exciter-Driver for Selsyns or Syncros

PRICE:
  • $ 500 (U.S. Funds)

Specifications:

    INPUT:

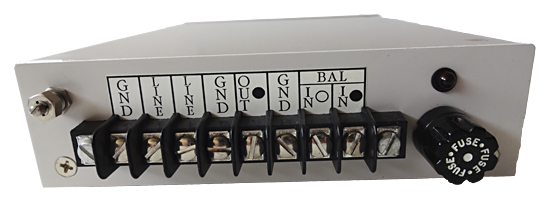

  • Connector: Barrier Terminal-strip
  • Impedance: 500K Ω
    TRANSFER:
  • BW: DC-20KHz (+/-2db)
  • Gain: 0 to 10 (10-turn Pot)
  • Balance-control
    OUTPUT:
  • Connector: Barrier Terminal-strip
  • +/-30V @ +/-200mA into 150-Ohm Load
    POWER:
  • 120V-AC - 25-Watts
    SIZE:
  • 9-1/2" W x 6" D x 5-1/2" H
    WEIGHT:
  • 5 lb.
