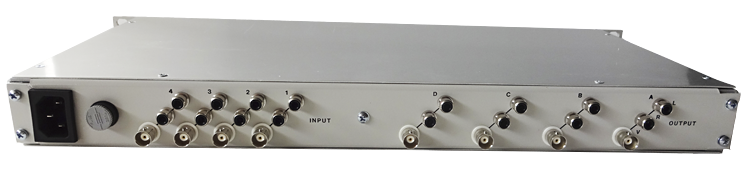

The Model RSPB-4x4S Stereo Audio Follow Video
Assigning Type Matrix Routing Switcher is designed for selecting an Audio / Video signal among multiple sources.

It is a 4-Input / 4-Output Stereo Audio Follow Video Routing Switcher distribution system with internal amplifiers with buffered outputs.

The RSPB-4x4S matrix switcher connects multiple inputs to multiple outputs using complex array matrices. Any input can be assigned to one, two, or more, or all outputs.

Applications:

  • Broadcast
  • Studio
  • Home Use
  • Commercial Department Store Video Demo and Ads
  • Post Production Video Facilities
  • Staging
  • Instructional Videos
  • Government / Political

PRICE:
  • $ 750 (U.S. Funds)

Specifications:

    INPUTS:
  • 4 - Stereo Audio (RCA) follow Video (BNC)
    OUTPUTS:
  • 4 - Stereo Audio (RCA) follow Video (BNC)
  • Buffered: Audio & Video
  • D.C. to 8 MHz
    SWITCHING:
  • Interlocking Push-Button (lighted)
    SIZE:
  • 19" W x 6-1/2" D x 1-3/4" H
    WEIGHT:
  • 3 lbs.
