VAD-16 Audio Video Distribution Press Feed Mult Box w/Analog & Digital

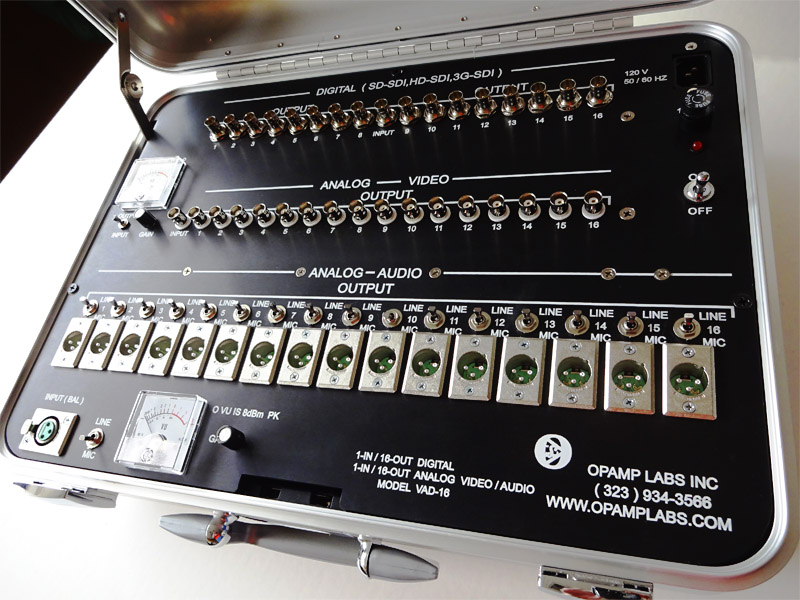

The Model VAD-16 1-in/16-out Audio/Video High Definition Distribution Press Box is useful as a hi def network feed, for courtrooms, sporting events, concerts, etc. for up to 16 monitors, recorders, and amplifiers per section. It can handle both analog and digital signals. The Digital section is compatible with SD-SDI, HD-SGI, 3G-SDI signals.

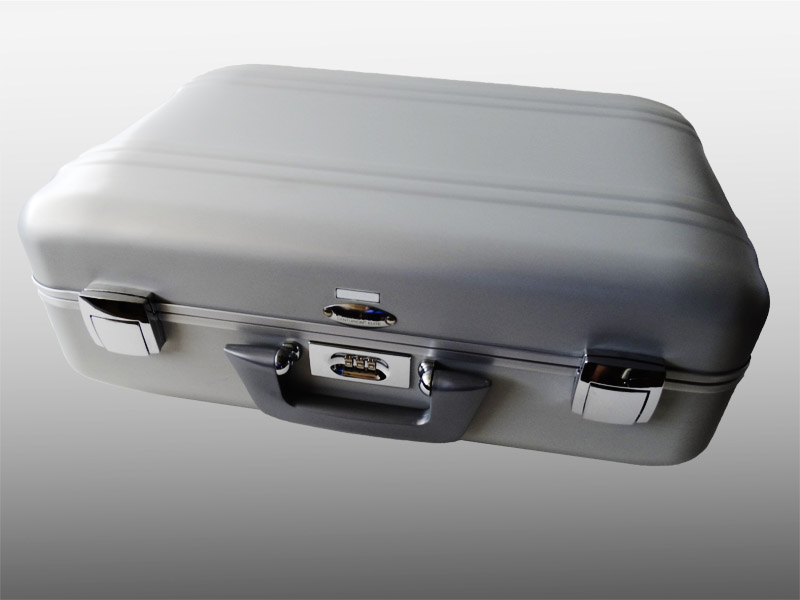

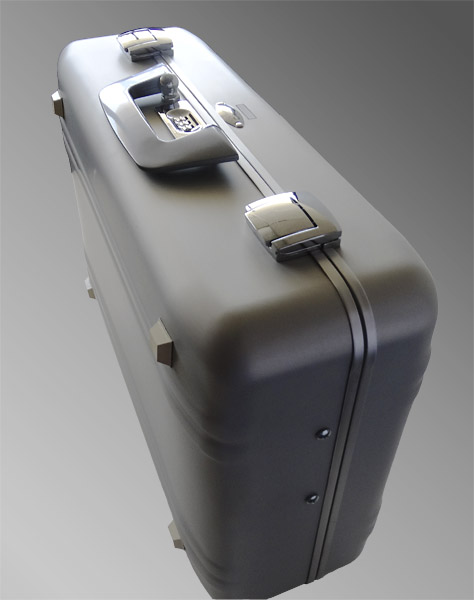

The unit is mounted in a portable, heavy-duty Zero Halliburton case.

Available in both 110v and 220v versions.

NOTE that for digital signals on the VAD-16 Hi-Def Audio Video Distribution Press Feed Mult Box, the video and audio are combined (no separate audio connections).

Applications:

Auditoriums
Broadcast
Conventions / Political Rallys
Courtrooms / Trials
Live Events / Talks / Concerts
Government Meetings / Press Conferences
Interviews
News Media
Public / Business Meeting / Presentations
Public Podium Meetings / Gatherings
Security Briefs
Schools / Colleges / Education
Sports Events
Television Stations / HDTV
Training / Instruction

PRICE:

$ 4,495.00 (U.S. Funds)

Dealer / Reseller Inquiries Welcome

Download VAD-16 Specs and Photos PDF

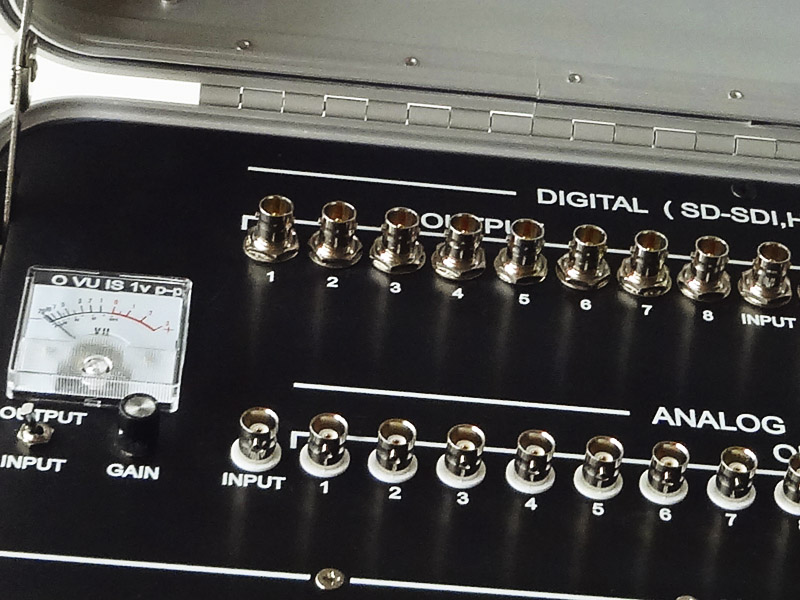

Specifications:

Input Impedance: 75 ohms +/- 1%
Input return loss: > -15dB @ 1.5 Gbps
Input level: 800 mV p-p +/- 20%
Input Connector: BNC
Output Impedance: 75 ohms +/- 1%
Output return loss: > -15dB @ 1.5 Gbps
Output level: 800 mV p-p +/- 5%
Output Connector: BNC
Modes: SD-SDI, HD-SDI, 3G-SDI
Input cable equalizer and multi-rate reclocker
Jitter: < 0.2 UI p-p
SD-SDI (143 – 540 Mbps) cable equalization 350 meters for Belden type 1694A cable
HD-SDI (1.483 – 1.485 Gpbs) cable equalization 175 meters for Belden 1694A cable

Input Impedance: 75 ohms
Video Bandwidth: DC to 8 MHz (-1 dB)
Input Connector: BNC
Gain: Variable control ( up to 6 dB) and metered with source/load switch
Output Impedance: 75 ohms
Output Level: 1 v p-p
Output Connector: BNC
