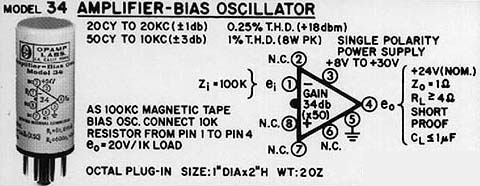

The Model 34 Audio Power Amplifier / Bias Oscillator is for Earphone or Small Speakers. It is a single polarity power supply Logic Module covered by an MU metal can with an Octal plug-in and is short proof.

To use as Magnetic Tape bias oscillator, connect 10K resistor from pin 1 to Pin 4 eo=20v/1K load.

Applications:

  • Earphone Amplifier
  • Small Speaker Amp
  • 100KC Magnetic Tape Bias Oscillator
  • Studio
  • PA
  • Theaters
  • Live Events / Concerts
  • Conventions / Political Rallys
  • Business / Industrial

PRICE:
  • $ 40 (U.S. Funds)

Specifications:

  • 20Hz to 20KHz (±1db)
  • 50Hz to 10KHz (±3db)
  • 0.25% THD (+18dbm)
  • 1% THD (8W Peak)
  • RL > 4Ω
  • Zo = 1Ω
    POWER:
  • +8V to 30V
  • +24V nominal
    SIZE:
  • 1" Dia x 2" H
    WEIGHT:
  • 2 oz.
