The Model 440C 50-Watt Power Amplifier is designed to drive loudspeakers.

The 440C van also be used as a Transducer, EHV, and a Constant-Current Amplifier.

Applications:

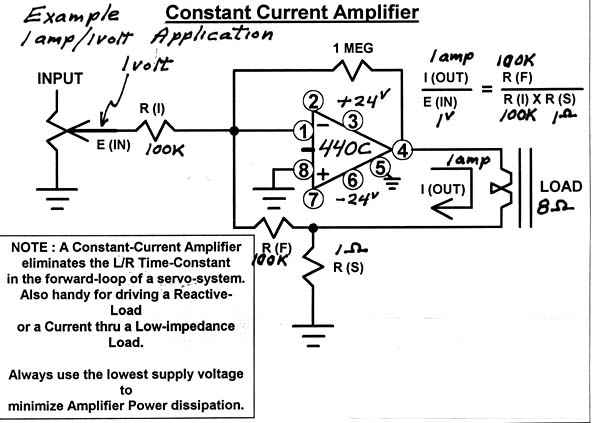

  • Constant-Current Amplifier
  • EHV Amplifier
  • Transducer Amplifier
  • Electronics
  • Servo Amplifier / Servomechanisms
  • Constant-Current Amp
  • Damping Control
  • Velocity Servo for RPM control
  •
  • Auditoriums
  • Broadcast
  • Conventions / Political Rallys
  • Courtrooms / Trials
  • Live Events / Concerts
  • Government Meetings / Press Conferences
  • Home use
  • Interviews
  • News
  • PA
  • Public Meetings
  • Security Briefs
  • Sports Events
  • Stadiums
  • Studio
  • Theaters
  • Business / Industrial

PRICE:
  • $ 125 (U.S. Funds)



Specifications:

    INPUT:
  • Offset Voltage: 5 mV
  • Bias Current: 100 pA Ω
  • Avg. Drift: 15 uV / Deg-C
  • Impedance: 100MΩ
    TRANSFER:
  • Open-Loop Gain: 100,000
  • Slew Rate: 10 V/uSec
  • Full Power Bandwidth: DC-25 KHz
    OUTPUTS:
  • Impedance: 1 Ω
  • 50 Watts
    POWER:
  • +/- 6V to +/- 40V
    SIZE:
  • 4-3/4" W x 5-1/2" D x 2-5/8" H
    WEIGHT:
  • 20 oz

Apps.
