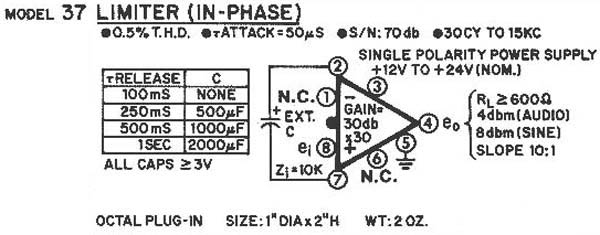

The Model 37 In-Phase Limiter is a single polarity power supply Logic Module covered by an MU metal can with an Octal plug-in.

A Limiter is a circuit that allows signals below a specified input power to pass unaffected while attenuating the peaks of stronger signals that exceed this input power. Mastering engineers often use limiting combined with make-up gain to increase the perceived loudness of an audio recording during the audio mastering process.

Applications:

  • Broadcast
  • Conventions / Political Rallys
  • Courtrooms / Trials
  • Live Events / Concerts
  • Government Meetings / Press Conferences
  • Home use
  • Interviews
  • News
  • PA
  • Public Meetings
  • Security Briefs
  • Sports Events
  • Stadiums
  • Studio
  • Theaters
  • Business / Industrial

PRICE:
  • $ 50 (U.S. Funds)

Specifications:

Single polarity power supply
    INPUT:
  • Zi = 10K
  • Attack: 50µS
    TRANSFER:
  • Bandwidth: 30Hz-15KHz
  • Release: up to 2000µF
  • THD: 0.5%
  • S/N: 70db
    OUTPUTS:
  • RL≥ 600Ω
  • Audio: 4dbm
  • Sine: 8dbm
  • Slope: 10:1
    POWER:
  • +12V to +24V
    SIZE:
  • 1" Dia x 2" H
    WEIGHT:
  • 2 oz
