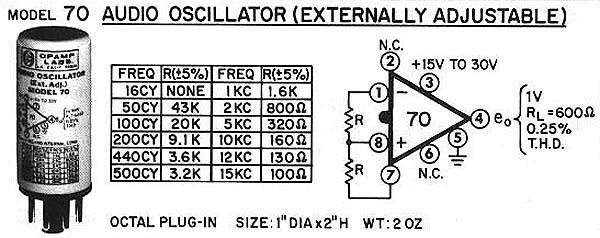

The Model 70 15-30V Audio Oscillator is an externally adjustable frequency with 2-Resistors SET logic module with an octal plug-in.

Our Model 70 audio oscillator produces frequencies in the audio range from 16CY to 15KC.

Audio oscillators generate a synthisized repetitive, oscillating electronic signal in electronic devices such as Television transmitters, Radio transmitters, RF Controls, Audio Synthesizers, and Inverters

Applications:

  • Audio Synthesizers
  • Broadcast TV Transmitters
  • Broadcast Radio Transmitters
  • Clock Signals that regulate Computers
  • Electronic Beepers
  • Inverters
  • RF Controls
  • Video Games

PRICE:
  • $ 50 (U.S. Funds)

Specifications:

    INPUT:
  • Freq: 16CY R(± 5%): None
  • Freq: 50CY R(± 5%): 43K
  • Freq: 100CY R(± 5%): 20K
  • Freq: 200CY R(± 5%): 9.1K
  • Freq: 440CY R(± 5%): 3.6K
  • Freq: 500CY R(± 5%): 3.2K
  • Freq: 1KC R(± 5%): 1.6K
  • Freq: 2KC R(± 5%): 800Ω
  • Freq: 5KC R(± 5%): 320Ω
  • Freq: 10KC R(± 5%): 160Ω
  • Freq: 12KC R(± 5%): 130Ω
  • Freq: 15KC R(± 5%): 100Ω
    OUTPUT:
  • Connector: Octal Plug-In
  • 1V
  • RL=600Ω
  • THD: 0.25%
    POWER:
  • +15-30V
    SIZE:
  • 1" Dia. x 2" H
    WEIGHT:
  • 2 oz.


Model 70 Audio Oscillator
