The Model 711 +24V Tape Bias Oscillator is an adjustable frequency logic module with an octal plug-in.

Our Model 711 tape bias oscillator produces frequencies at that are adjustable from 60KC to 100KC.

The 711 Tape Bias Oscillator creates a very high frequency tone, which helps to excite the magnetic particles resulting in wider frequency response, and significantly lower distortion

Applications:

  • Magnetic Tape Recording

PRICE:
  • $ 50 (U.S. Funds)





Specifications:

    INPUT:
  • Connector: Octal Plug-In
  • .047µf Mylar for 60KC Tuning
  • 100KC without Ct
    OUTPUT:
  • Connector: Octal Plug-In
  • 35V RMS (1KΩ)
  • 90V RMS (5KΩ)
    POWER:
  • +24V (120mA)
    SIZE:
  • 2" Dia. x 3" H
    WEIGHT:
  • 8 oz.

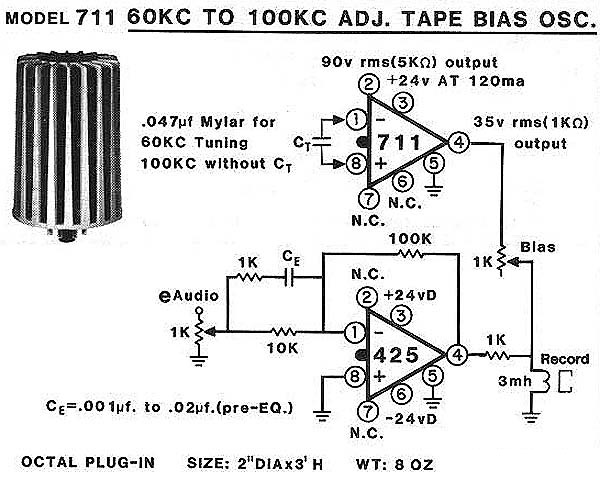

Model 711 60KC to 100KC Adjustable Tape Bias Oscillator
