The Model 91 +24V Pulse Latching Multi-Station Relay with Octal Plug-In.

A latching relay is a special kind of relay. While a conventional relay uses power continuously when its internal switch is to be closed (relay energised), a latching relay requires only a brief voltage pulse to change state. This makes latching relays perfect for energy savings in battery powered systems where the relay needs to stay energised for extended periods of time. It also works well for low-voltage applications where contact potential can interfere with the measurement.

Applications:

  • Battery Powered Electronics
  • Low Voltage apps

PRICE:
  • $ 30 (U.S. Funds)

Specifications:

On power Turn-On
relay contact Open

    INPUT:
  • Connector: Octal Plug-In
  • +24V On / Off
    TRANSFER:
  • Response Time ≤ 1mSEC
    OUTPUT:
  • Connector: Octal Plug-In
  • Isolated 1 Amp contacts
    POWER:
  • +24V
    SIZE:
  • 1" Dia x 2" H
    WEIGHT:
  • 2 0z.

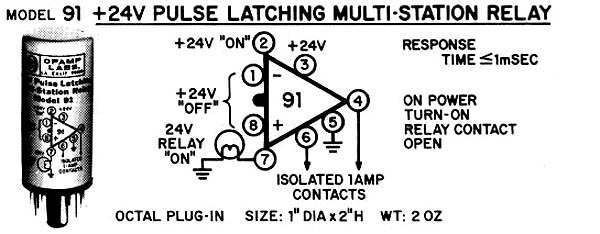

Model 91 +24V Pulse Latching Multi-station Relay
